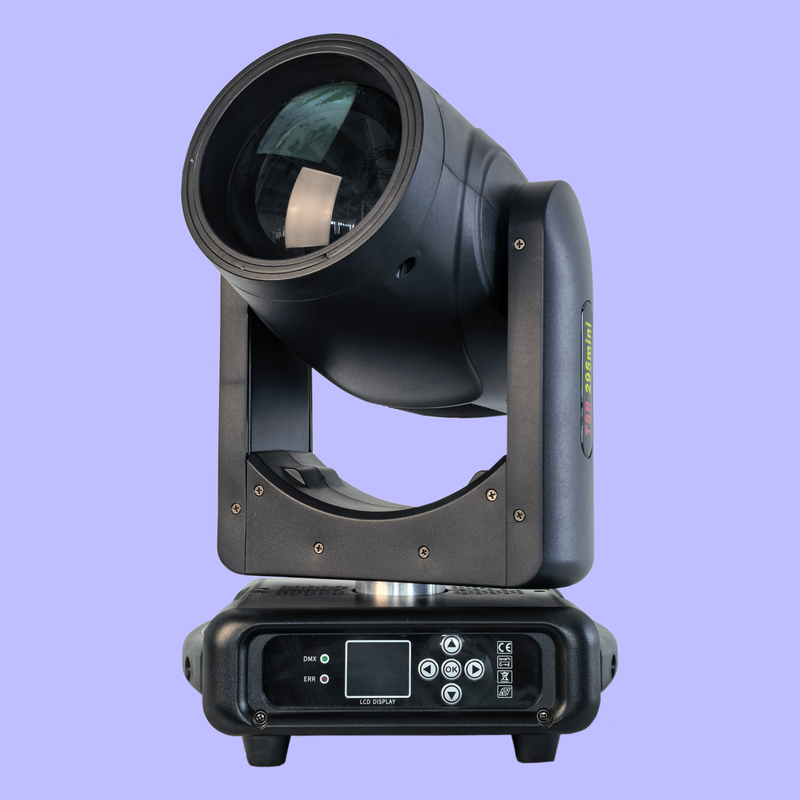

- The page is：Products > SR-295MINI
specification
instructions downloads
light data bank
TECHNICAL PARAMETER:
VOLTAGE: AC100- 240V 50/60Hz
LIGHT SOURCE:295W
POWER CONSUMPTION: 330W
OPTICAL DEVICE: high efficiency lens group,0°-2°zoom
ELECTRONIC FOCUS: 20 meters, 60000 LUX
CHANNEL MODE: 16 standard DMX512 channel
LEVEL SCANNING: 540 (16 bit precision scan)
VERTICAL SCAN: 280 (16 bit precision scan)
COLOR WHEEL: 12color and white light
with two-way rotating and rainbow effect
GOBO WHEEL: 13 gobos and white circle
with design jitter and arbitrary positioning function
PRISM: 2prism,2 prism wheel with superposition,
positive and negative rotation.
SHUT: shut up to 10 times per second,
random shut and pulse shut can be choosed
DIMMER: 0% ~ 100% linear dimmer
FROST: 0% ~ 100% linear frost
EFFECT: 6 color wheel
Electronic ballast : make the product more light and bright.
Lamp more stable environmental protection and
more energy saving
SWITCHING POWER SUPPLY : AC1G0 ~ 240 V, 50/60 HZ
FIXTURE DIMENSION: L275×W205×H455(mm)
PACKING DIMENSION: L500×W345×H365(mm)
NET WEIGHT: 8.5KG
GROSS WEIGHT: 11.5KG
