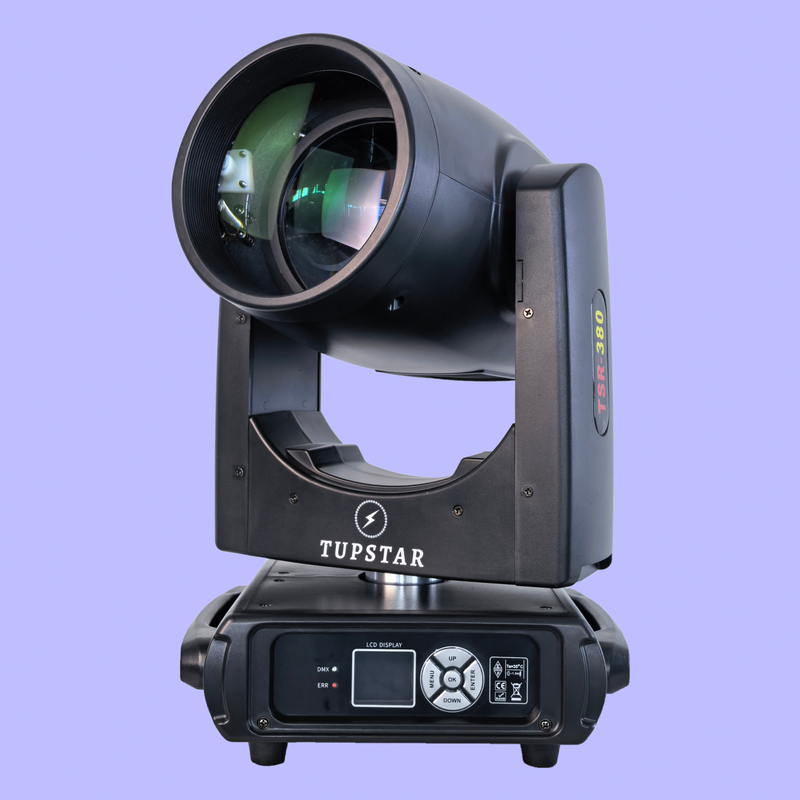

SRT-380
TECHNICAL PARAMETER:
VOLTAGE: AC100- 240V 50/60Hz
功 耗：100V-240V 50HZ,450W
LIGHT SOURCE: 17R,380W
POWER CONSUMPTION: 450W
OPTICAL DEVICE: high efficiency lens group,0°-2°zoom
ELECTRONIC FOCUS: 20 meters, 150000 LUX
CHANNEL MODE: 16 standard DMX512 channel
LEVEL SCANNING: 540 (16 bit precision scan)，
VERTICAL SCAN: 280 (16 bit precision scan)
COLOR WHEEL: 14color and white light
with two-way rotating and rainbow effect
GOBO WHEEL: 13 gobos and white circle
with design jitter and arbitrary positioning function
SRT-380
PRISM: 2prism,2 prism wheel with superposition,
positive and negative rotation.
SHUT: shut up to 10 times per second,
random shut and pulse shut can be choosed
DIMMER: 0% ~ 100% linear dimmer
FROST: 0% ~ 100% linear frost
EFFECT: 6 color wheel
Electronic ballast : make the product more light and bright.
Lamp more stable environmental protection and
more energy saving
SWITCHING POWER SUPPLY : AC1G0 ~ 240 V, 50/60 HZ
FIXTURE DIMENSION: L324×W274×H520(mm)
PACKING DIMENSION: L560×W380×H440(mm)
NET WEIGHT: 13.5KG
GROSS WEIGHT: 15.5KG
