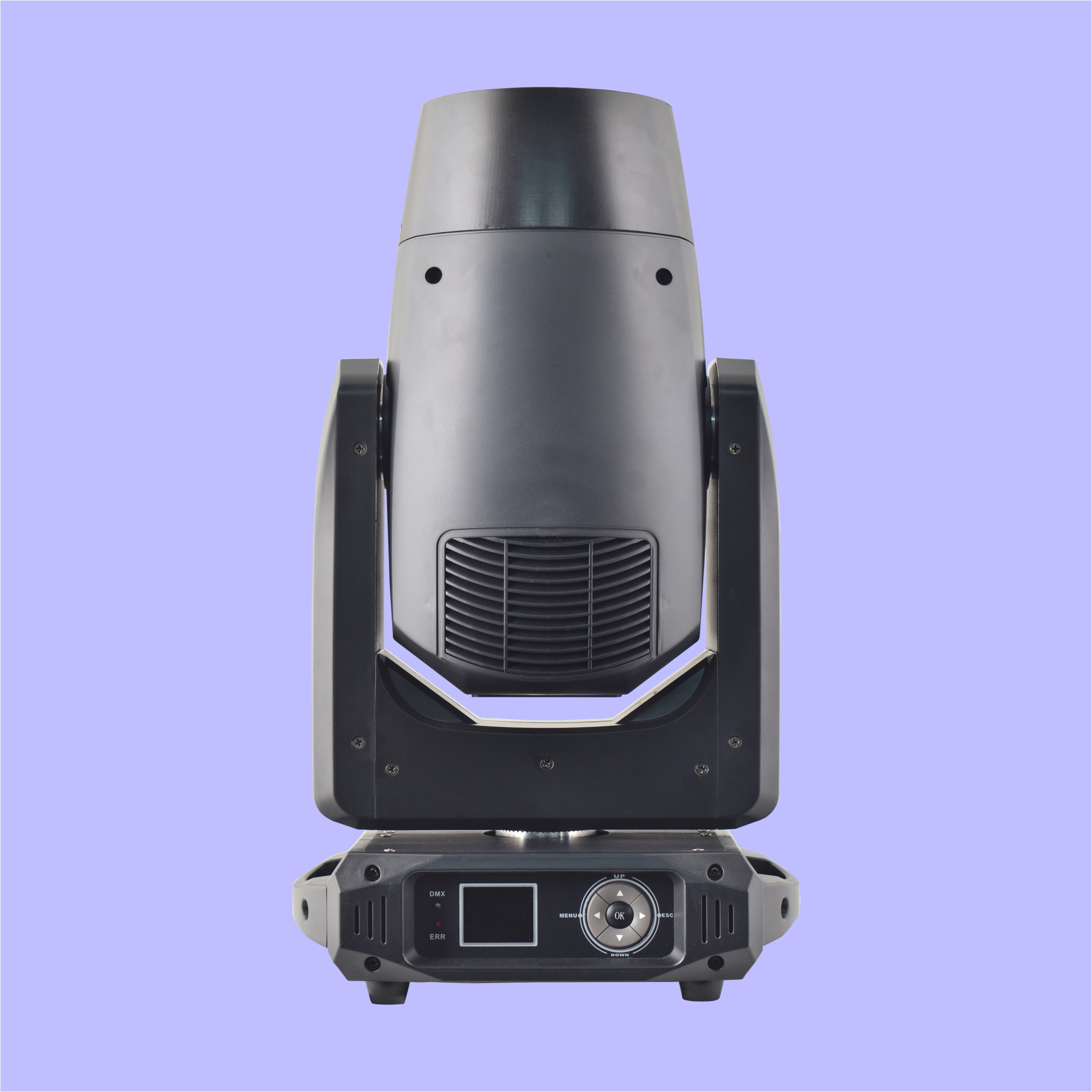

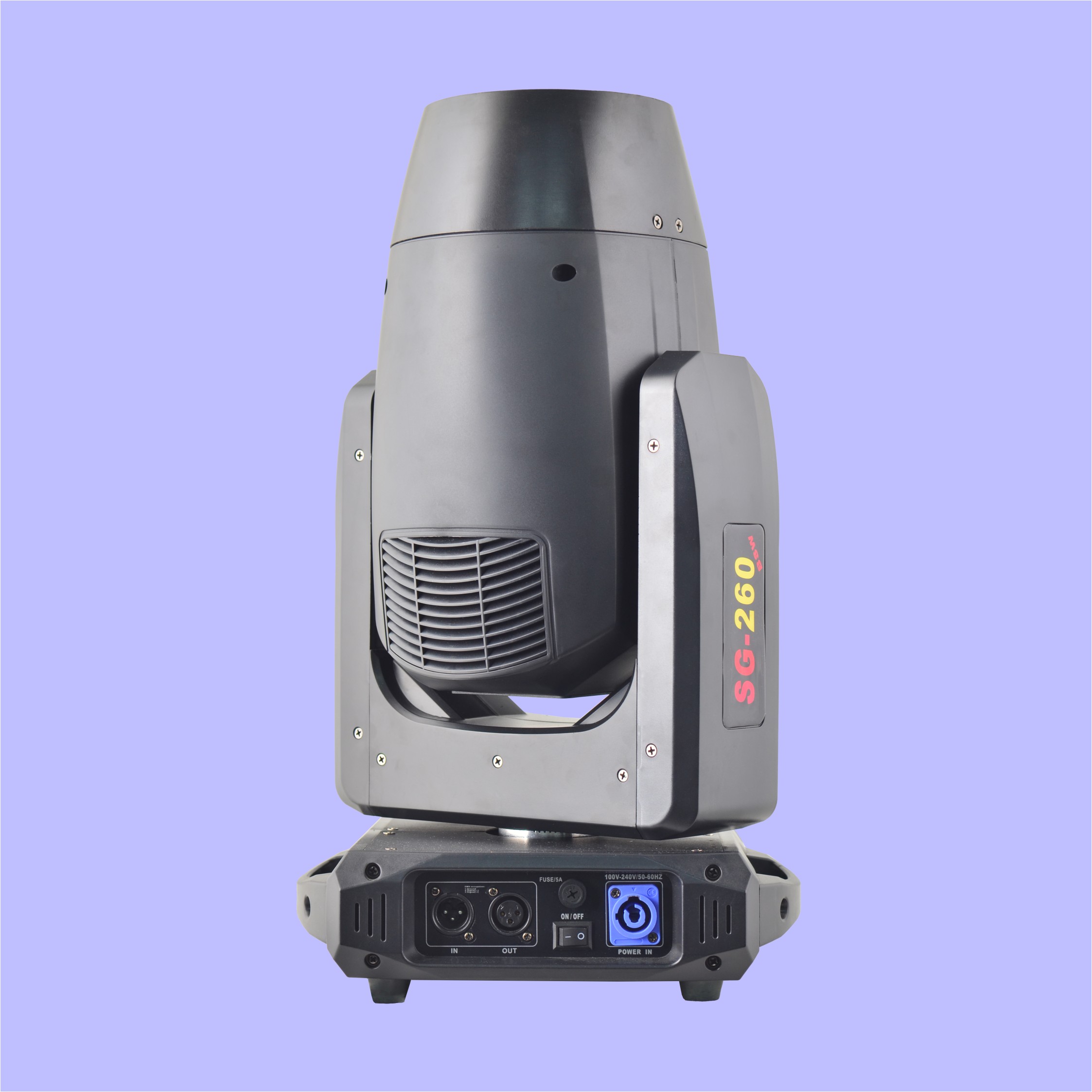

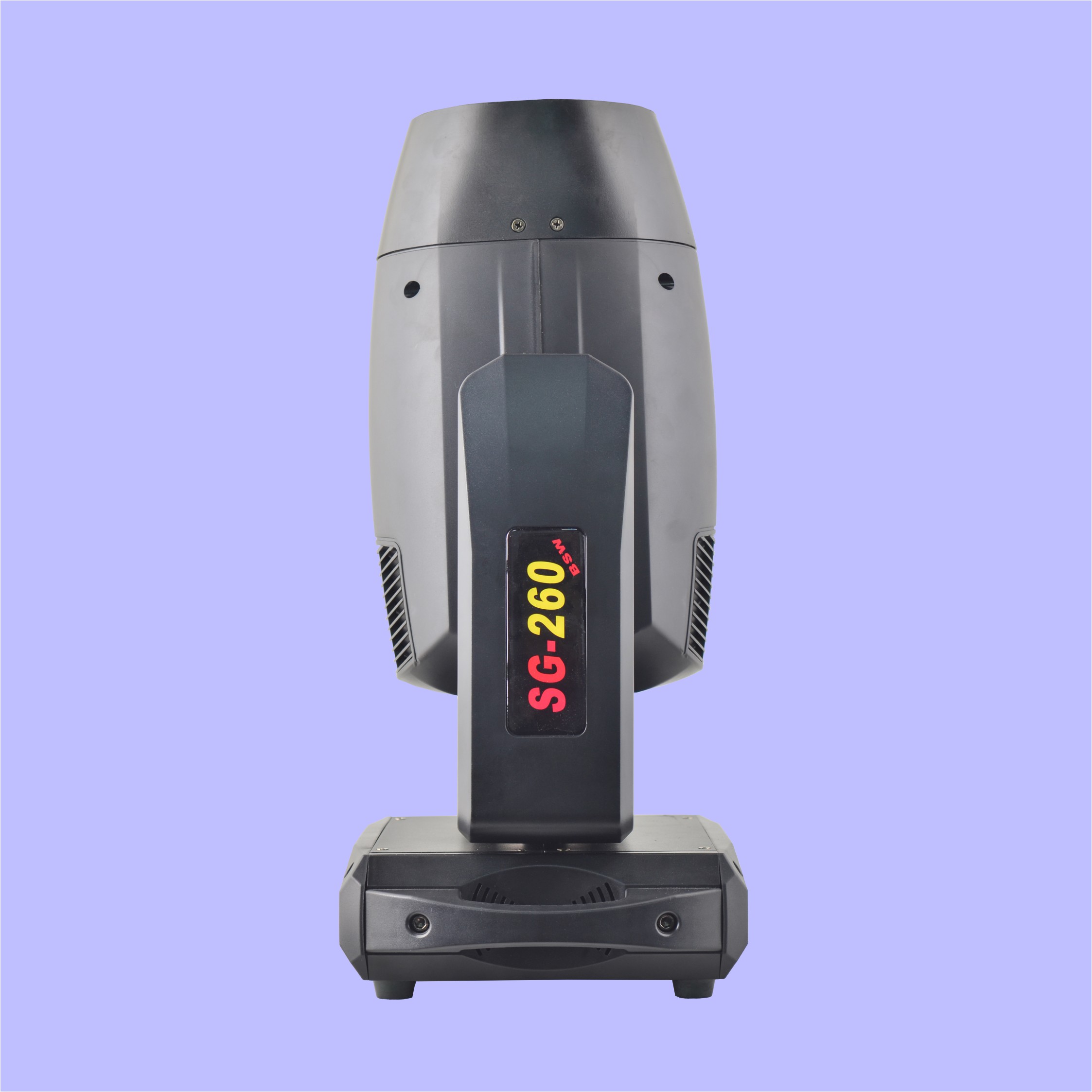

260W 3in1(with LED ring) (SG-260)
specification
instructions downloads
light data bank

Model number:SG-260 (with LED ring)

VOLTAGE: AC100- 240V 50/60Hz

LIGHT SOURCE: 260W

POWER CONSUMPTION: 320W

BEAM ANGLE: 2°--40°

1 COLOR WHEEL: 9 colors+open, half color effect,

bi-directional rainbow effect at variable speed

1 ROTATING GOBO WHEEL:6 rotating gobos+open,

bi-directionally rotating at variable speed

1 FIX GOBO WHEEL:9 fix gobos+open, bi-directionally

rotating at variable speed

1 PRISM WHEEL: 5/48-facet prism, bi-directionally

rotating, at variable speed

FOCUS: Linearly adjustable

WASH: 0~100% adjustable

DIMMER: 0~100% linearly adjustable

LED  EFFECT: 24PC 5050LED ,circle speed  change
STROBE: 0.5~20 flash per second, speed adjustable

PAN AND TILT: Smooth, automatic Pan & Tilt

positioncorrection, speed adjustable

RANGE: Pan-540°, Tilt-270°(16-bit)

CHANNELS: 16/18CH

NET WEIGHT: 11.5KG

GROSS WEIGHT: 13.5KG

PACKING DIMENSION:L340×W275×H555(mm)
