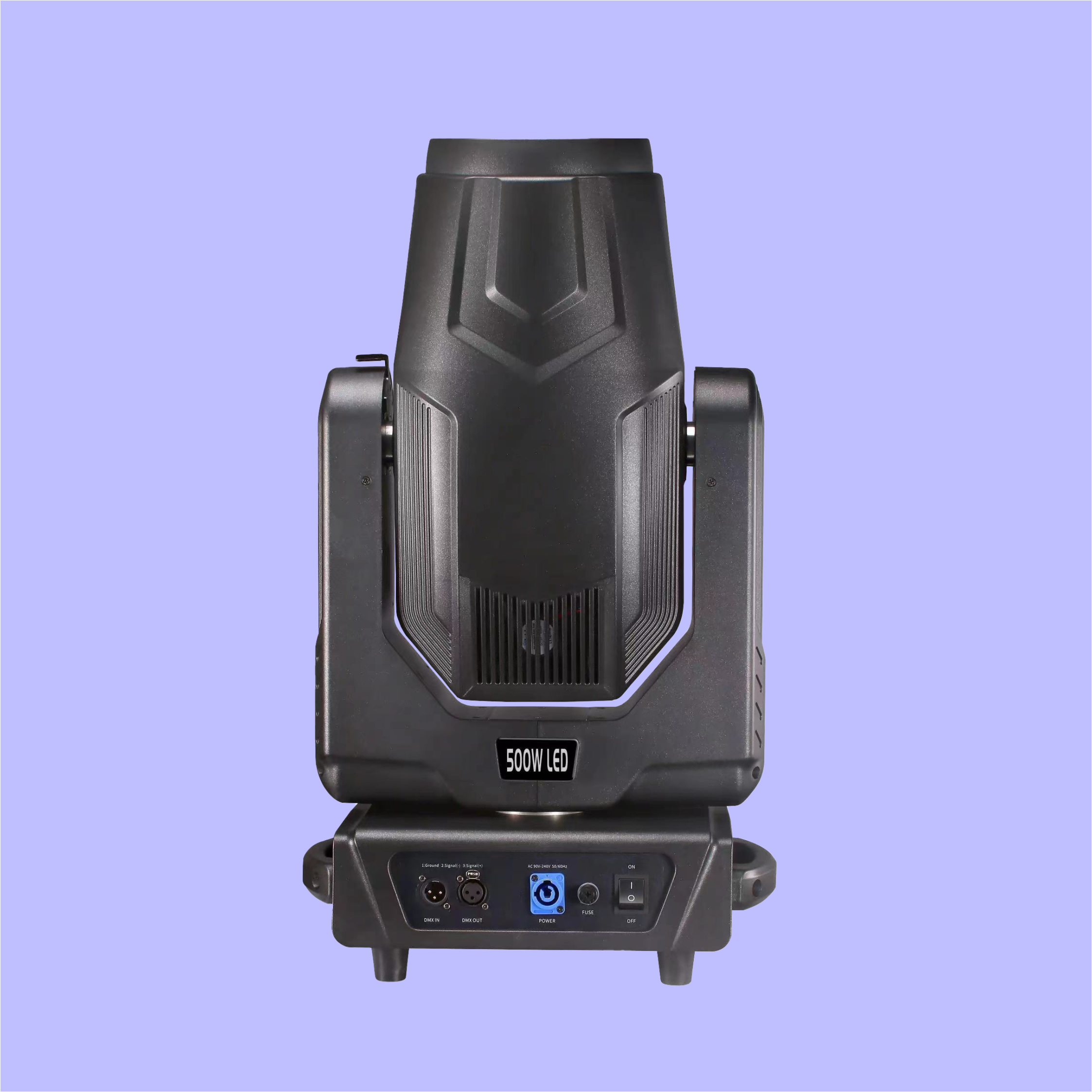

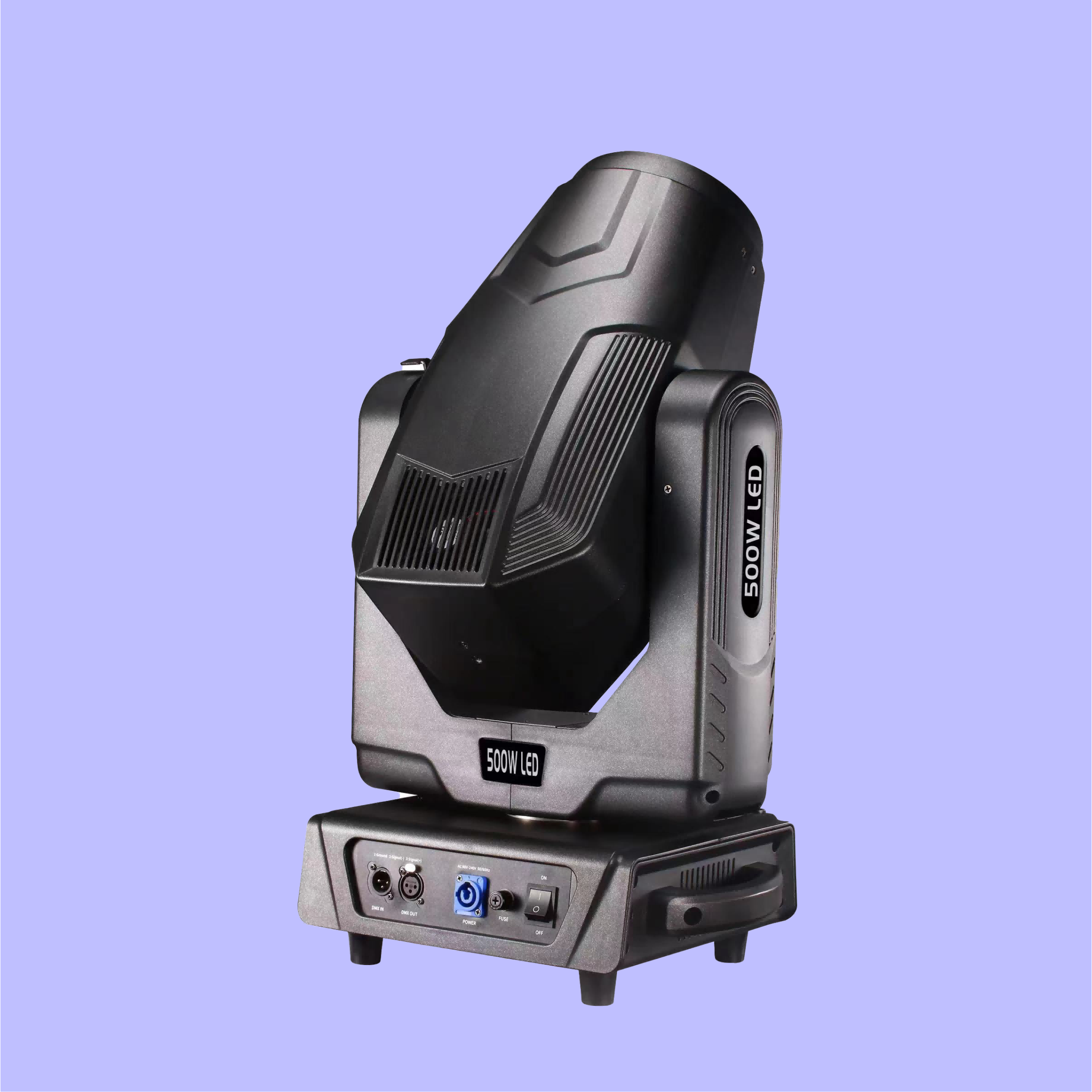

- The page is:Products > 500W LED 3 in 1 bsw moving head light(THUNDER-500b)
Model number:THUNDER-500b
Color temperature: 7500K
Color rendering index: 75
Input voltage :AC90V-240V/50-60HZ
Light source Specification: ECO500-80-R00-000
Light source life: 20000 hours
Lumen Illuminance: 4 m 120000 lm
Light aperture: 138MM
Rated power :600W
Channel mode :22/27 channel
Horizontal scanning :540 degrees (16bit precision scanning) electronic error correction
Vertical scanning :270 degrees (16bit precision scanning) Electronic error correction
Dimming system :0-100% linear adjustment
Focusing system: linear adjustment 4 m to 50 m
Atomization system :1 independent atomization effect, Light spot soft natural zoom
Angle: Beam 2.7 ~ 40° Dyeing 4-40° pattern 4-40°
High-speed strobe: 0-30 times/second. Adjustable speed stroboscopic effect.
Strobe macro color: 8 colors + white light. Color Half color function
Color system: independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed pattern + white light
Rotation pattern :7 glass patterns, each glass pattern can be independent positive
and negative rotation
Prism system: standard single 6-row prism and 8-prism, each prism can be independent positive and negative rotation
Macro power: console reset function, self-walking mode, master-slave mode
Display mode: LCD display, button + touch dual operation mode
Control signal: International standard DMX512. With RDM function, online software upgrade, Cooling method: axial fan to strengthen cooling
Safety device: with electronic temperature control overheating protection, overheating system failure electronic temperature control automatic power off protection
Appearance Material: high temperature plastic
Working environment :-20 degrees, 40 degrees
Protection level: IP20
Product Net weight: 23KG
Product size: 38*27*65CM (L*W*H)
Package size: 54*45*61CM
Total weight 27KG
Aviation case one package size: 73*50*88CM
Total weight 77KG
