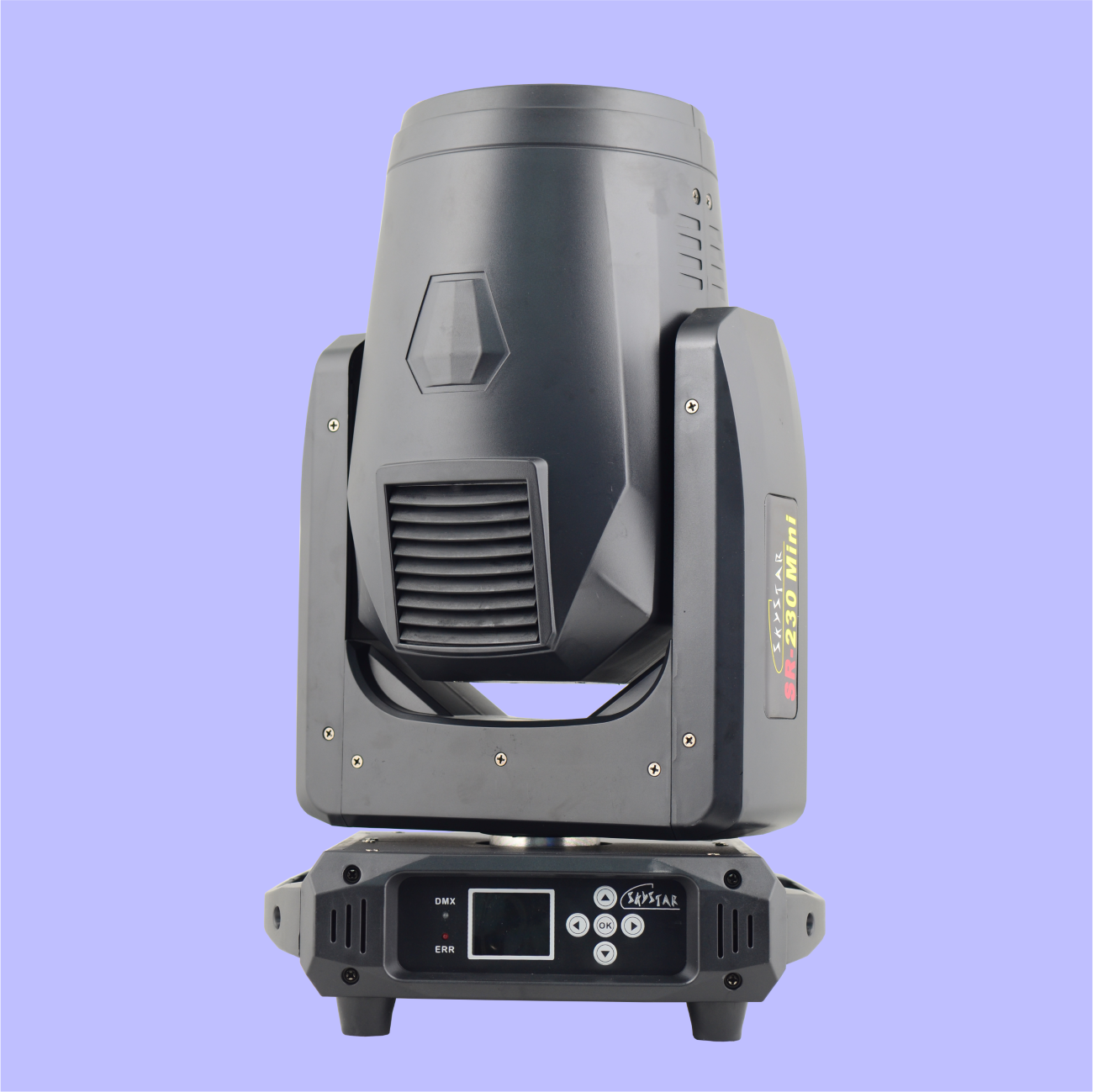

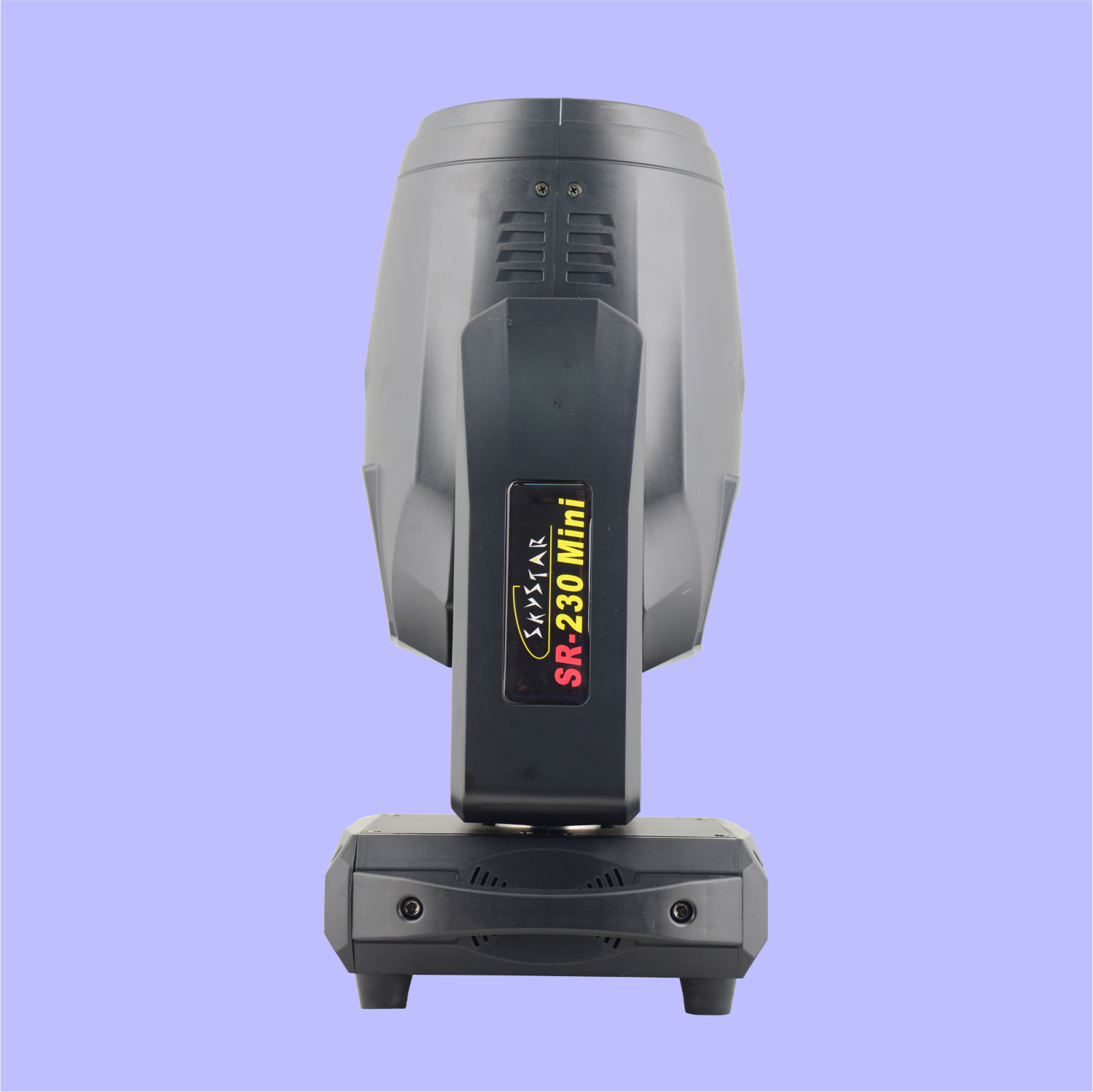

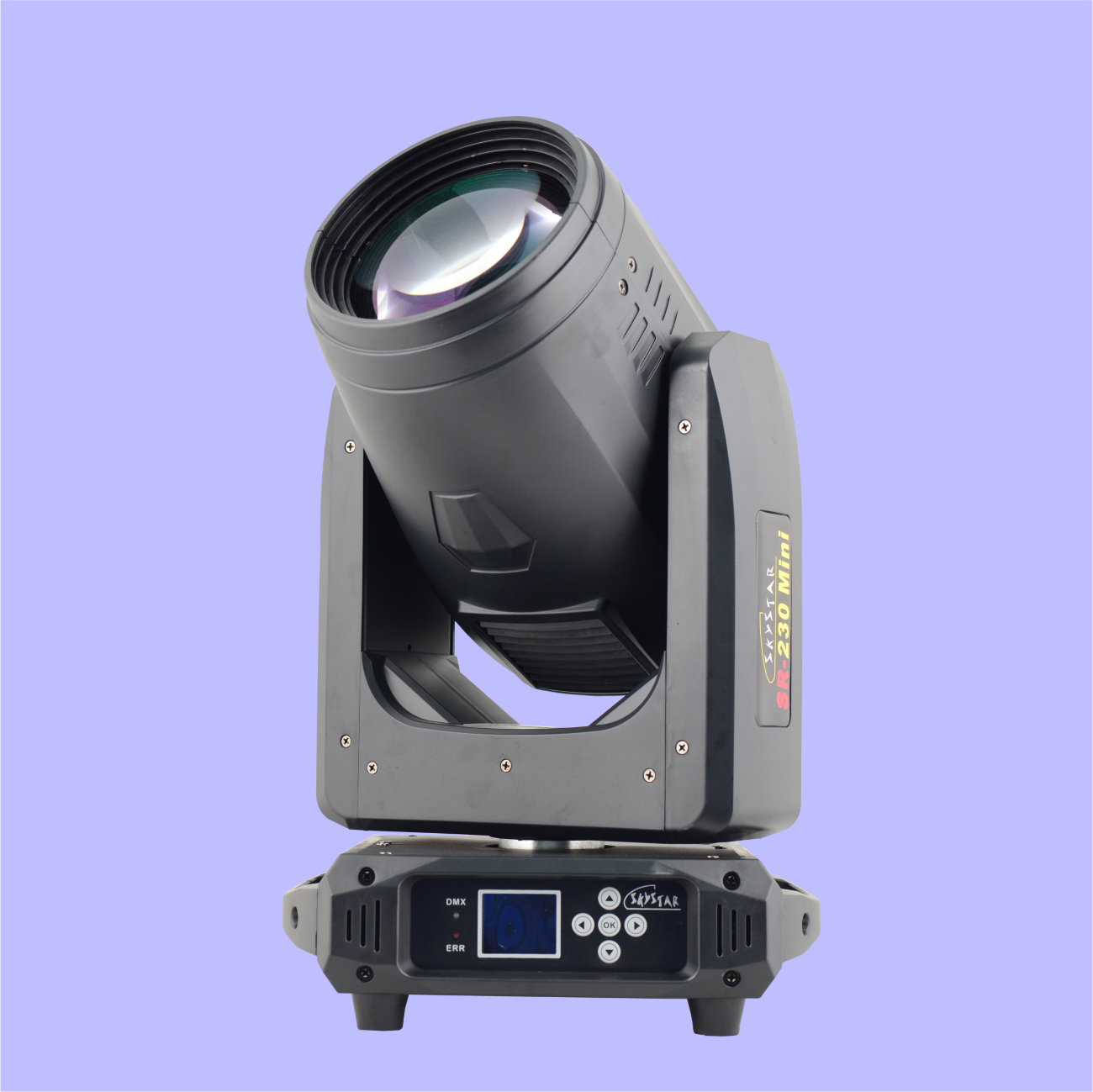

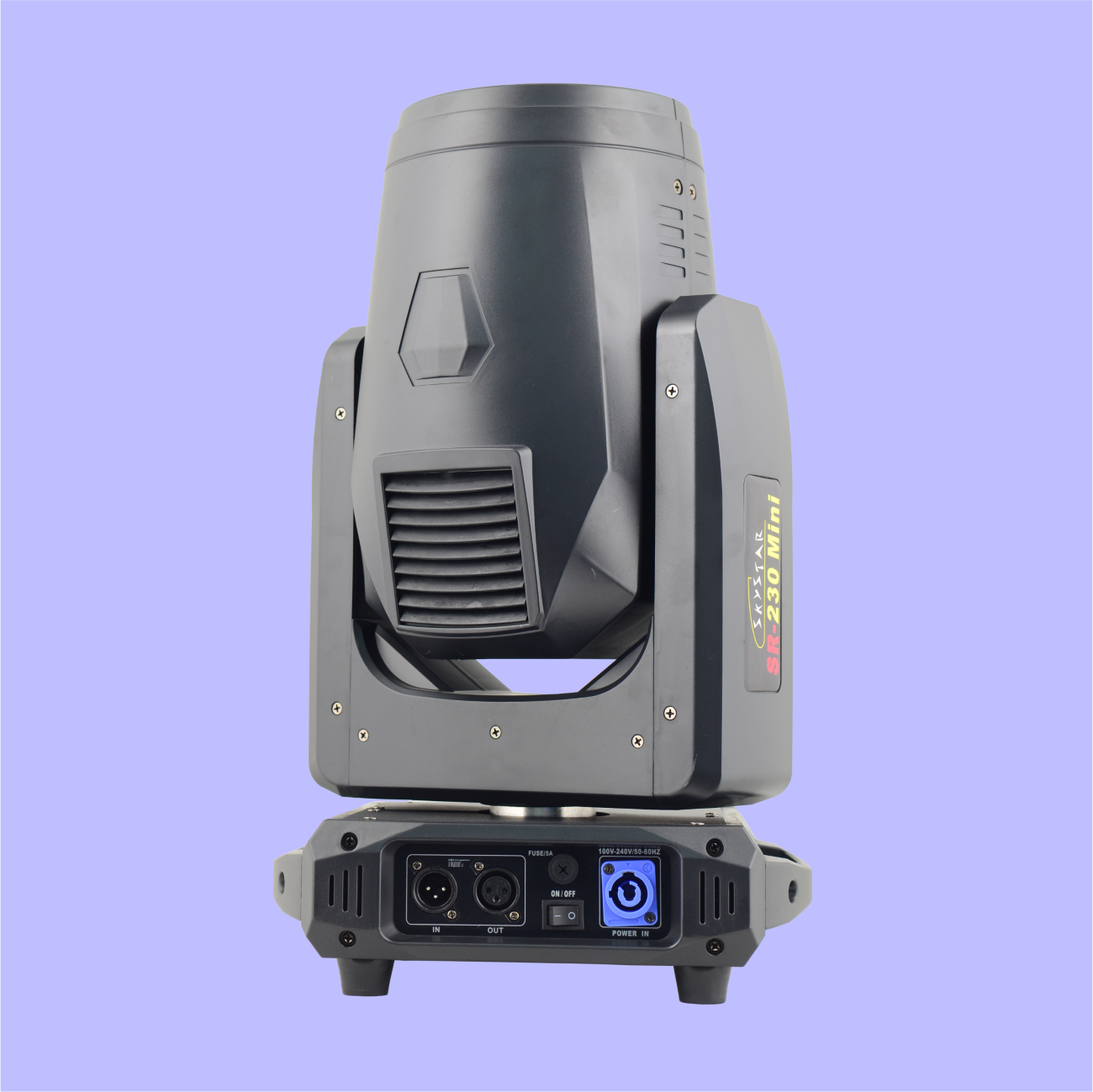

Model number:SR-230Mini

VOLTAGE: AC100- 240V 50/60Hz

LIGHT SOURCE: 7R,230W

POWER CONSUMPTION: 280W

OPTICAL DEVICE: high efficiency lens group,0°-2°zoom

ELECTRONIC FOCUS: 20 meters,  40000 LUX

CHANNEL MODE: 16 standard  DMX512 channel

LEVEL SCANNING: 540 (16 bit precision scan)

VERTICAL SCAN: 280 (16 bit precision scan)

COLOR WHEEL: 12color and white light

            with two-way rotating and rainbow effect

GOBO WHEEL: 13 gobos and white circle

            with design jitter and arbitrary positioning function

PRISM: 2 prism,2 prism wheel with superposition,

            positive and negative rotation.

SHUT:  shut up to 10 times per second,

            random shut and pulse shut can be choosed

DIMMER: 0% ~ 100% linear dimmer

FROST: 0% ~ 100% linear frost

EFFECT:   6  color  wheel

Electronic ballast : make the product more light and bright.

               Lamp more stable environmental protection and

                more energy saving

SWITCHING POWER SUPPLY : AC1G0 ~ 240 V,  50/60 HZ

FIXTURE DIMENSION: L286×W218×H465(mm)

PACKING DIMENSION: L345×W280×H530(mm)

NET WEIGHT: 9.8KG

GROSS WEIGHT: 11.5KG
