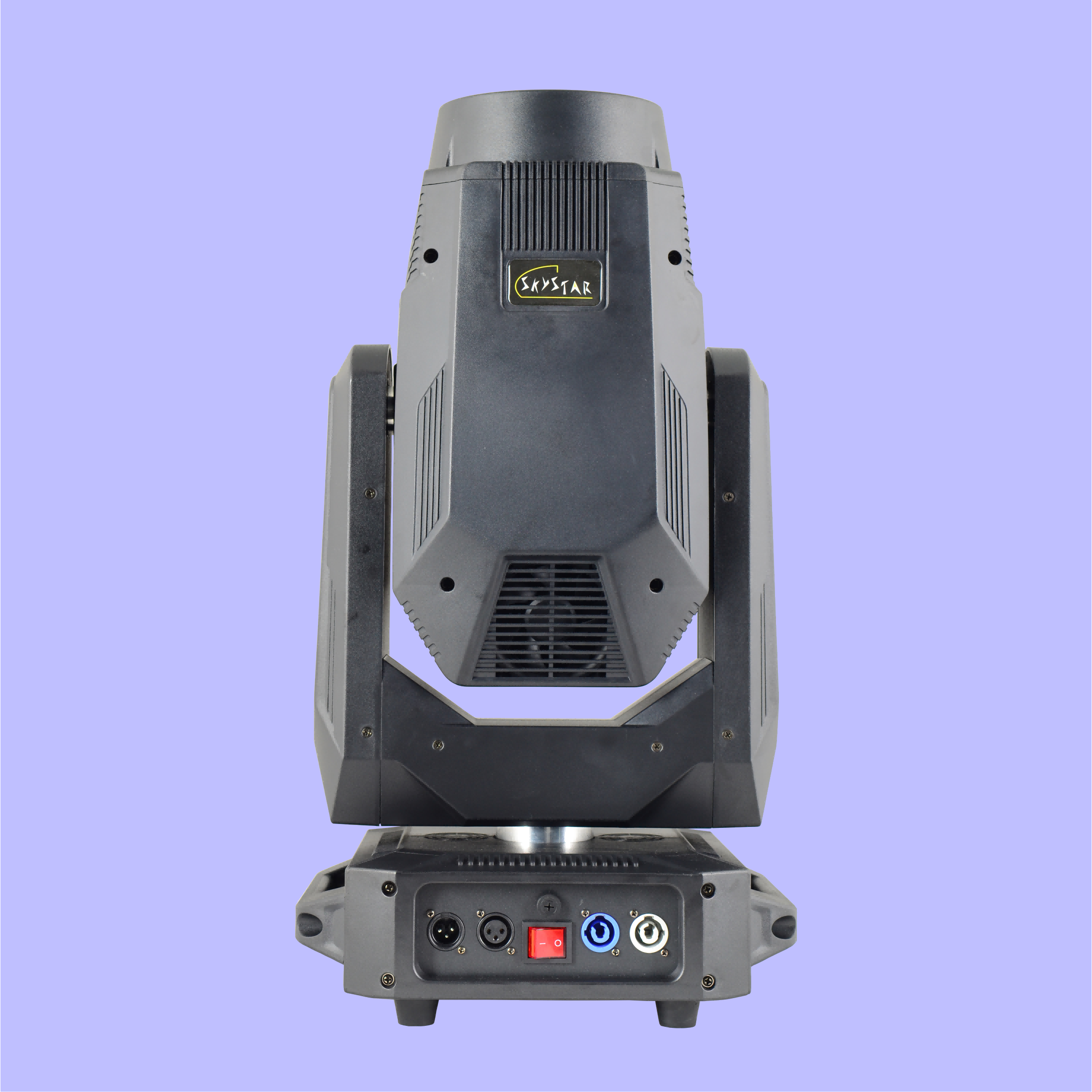

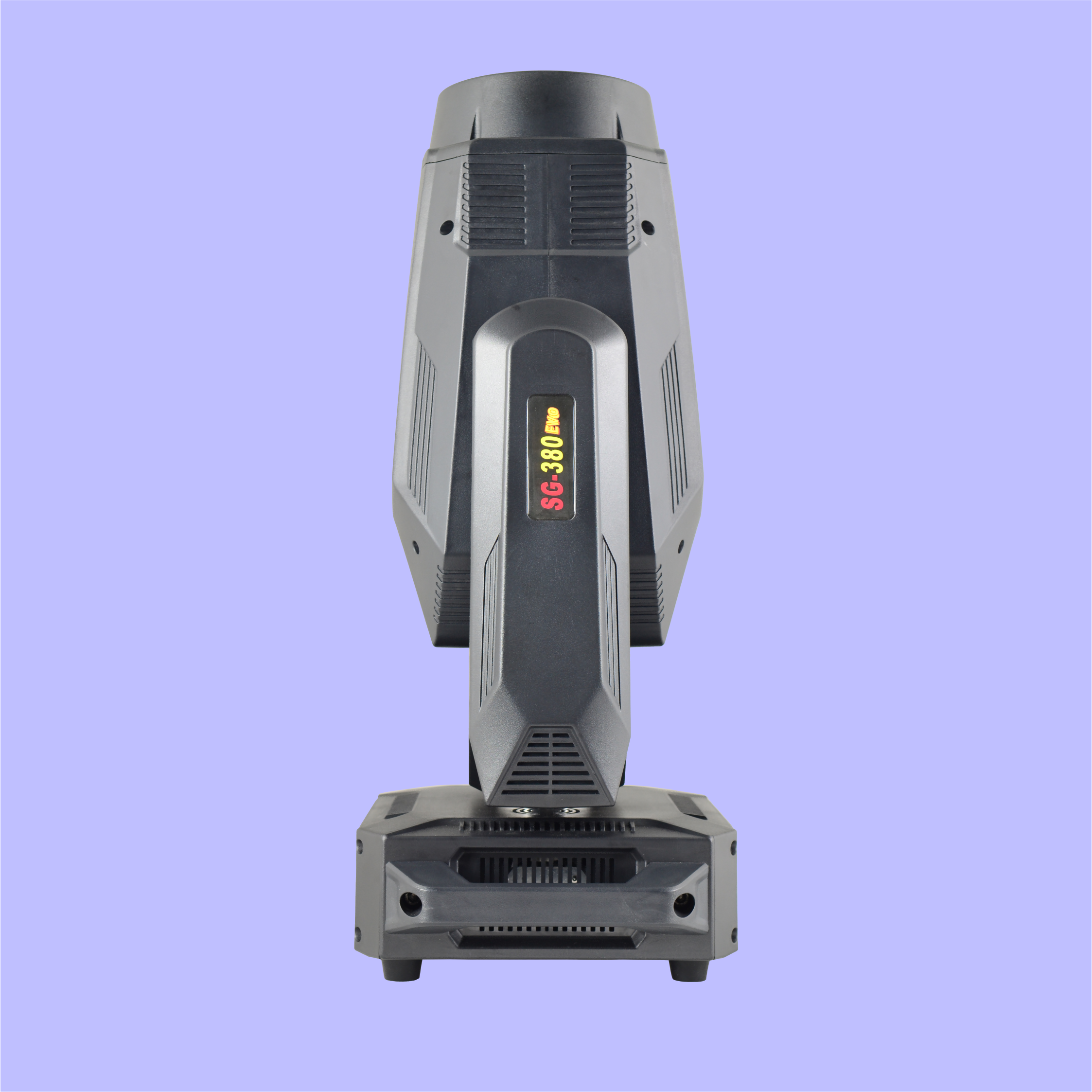

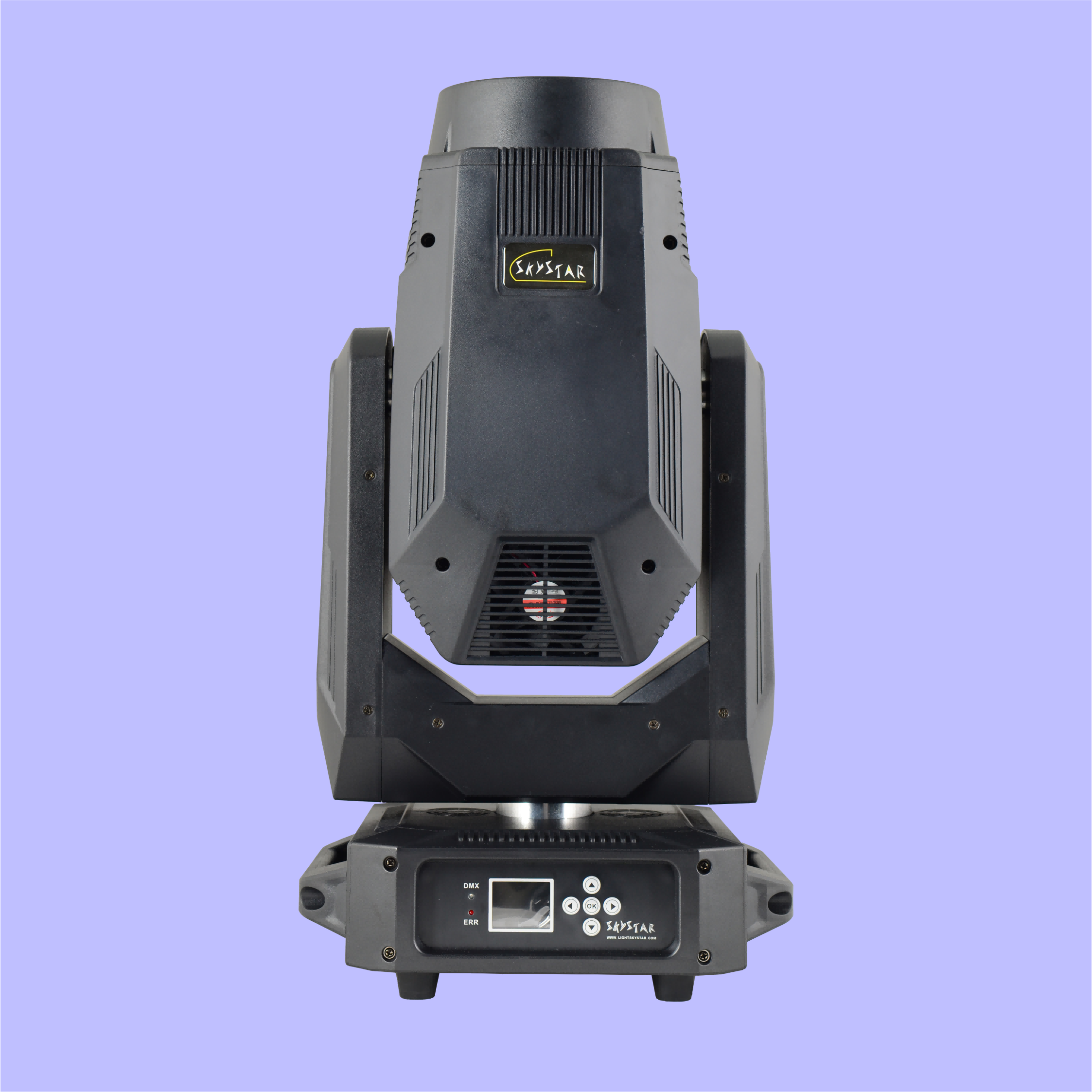

MODEL NUMBER:SG-380EVO

VOLTAGE: AC90- 240V 50/60Hz

LIGHT SOURCE: 18R 380W

POWER CONSUMPTION: 500W

BEAM ANGLE: 2°--40°

1 COLOR WHEEL: 9 colors+open, half color effect,

               bi-directional rainbow effect at variable speed

1 ROTATING GOBO WHEEL:7 rotating gobos+open,

             bi-directionally rotating    at variable speed

1 FIX GOBO WHEEL:9 fix  gobos+open, bi-directionally

             rotating at variable speed

2 PRISM WHEEL: 5-facet prism, 5-facet linear prism

               bi-directionally rotating, at variable speed

FOCUS:  Linearly adjustable

WASH: 0~100%  adjustable

DIMMER: 0~100% linearly adjustable

STROBE: 0.5~20 flash per second, speed adjustable

PAN AND TILT: Smooth, automatic Pan & Tilt

         positioncorrection,  speed adjustable

RANGE: Pan-540°, Tilt-270°(16-bit)

CHANNELS: 16/24CH

NET WEIGHT: 15.5KG

GROSS WEIGHT: 18KG

FIXTURE DIMENSION: L325×W249×H598/(mm)

PACKING DIMENSION: L390×W320×H650(mm)

Fixture Library for SG-380EVO(16CH d4)

Fixture Library for SG-380EVO(24CH d4)

Fixture Library for SG-380EVO(16CH R20)

Fixture Library for SG-380EVO(24CH R20)
