Power Supply: External power supply (+12V DC, Max 2A)
Power requirements: +12VDC, 1000mA
Power : 12W
Storage protection: There is a dip switch to protect the program editing or setting keys.
Adjustment: by dip switch (for RS-232 and MIDI)

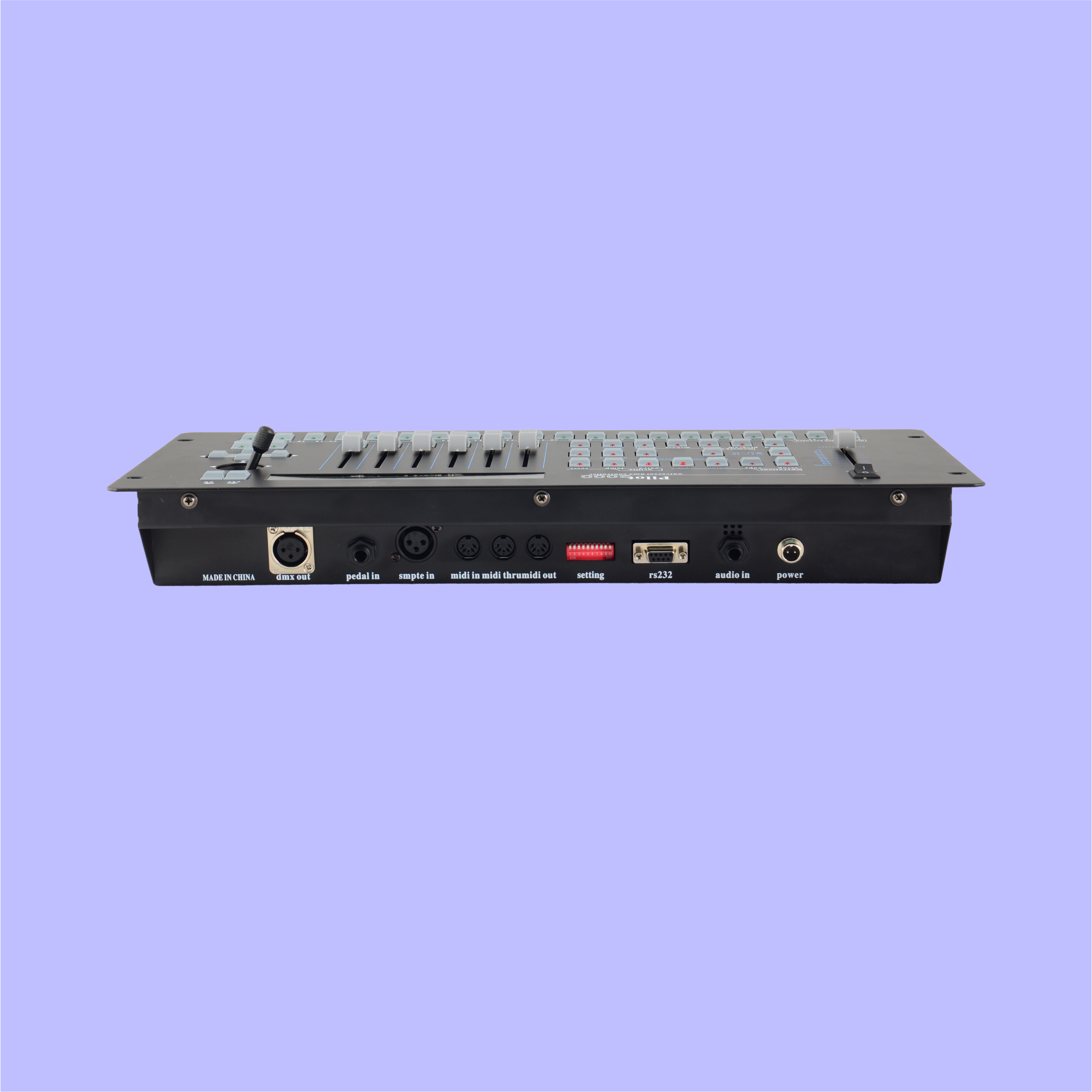

Input/output: -DMX input */ output using 5-core cannon, mainly used for serial digital feedback signals;
-6.3mm stereo socket for up/down memory change pedal;
-6.3mm unbalanced stereo socket for audio input -OdB, mono(or left); - RS-232 serial connection to PC with DB9 connector;
- 3-core cannon for SMPTE signal input *;
- Standard 5-core DIN connector for MIDI input - Through - output (IN-THRU-OUT)
DMX channels: Up to 512 channels can be configured for computer lights and dimming channels.
Size: Standard 19-inch 5U cabinet
(*) Does not work under this software version.
