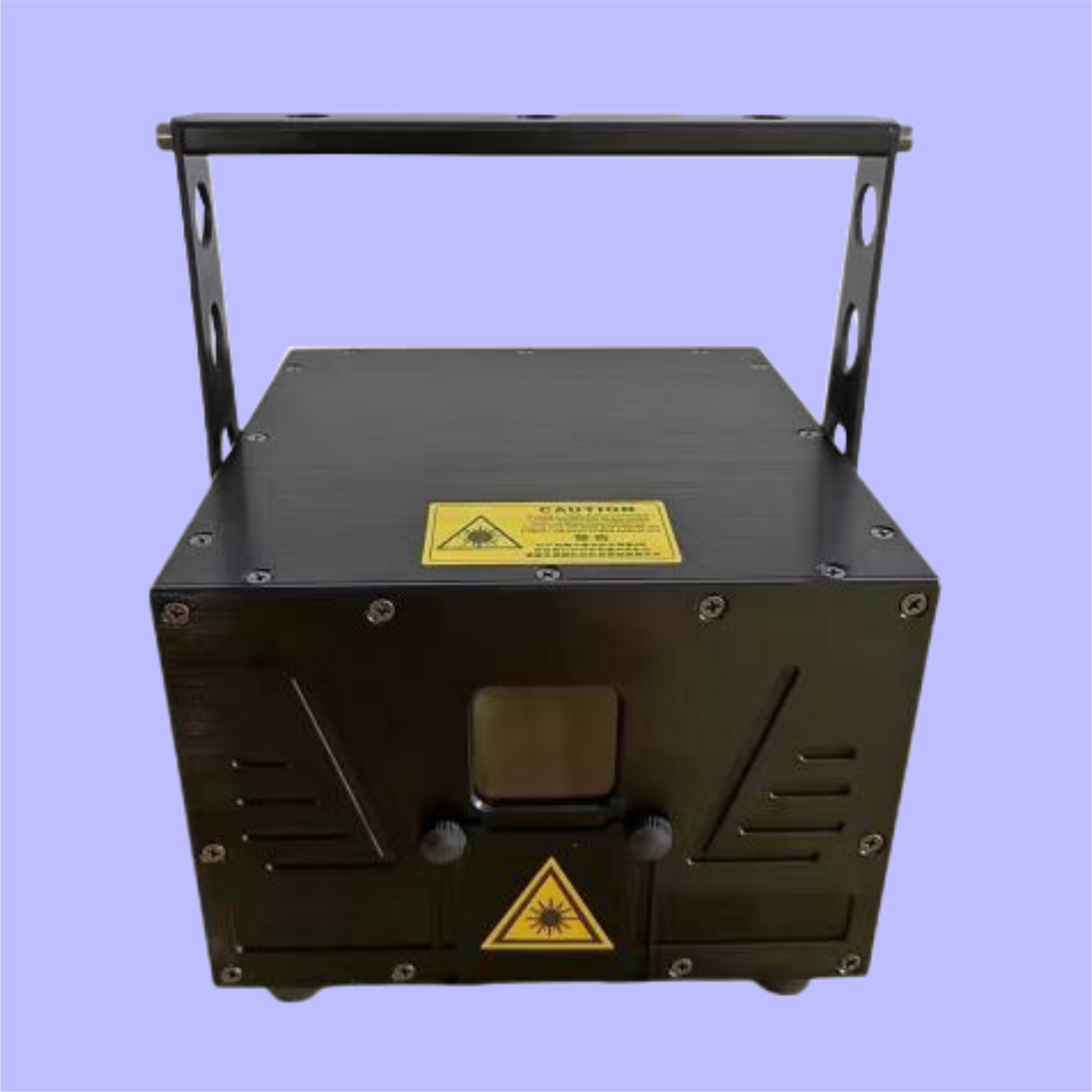

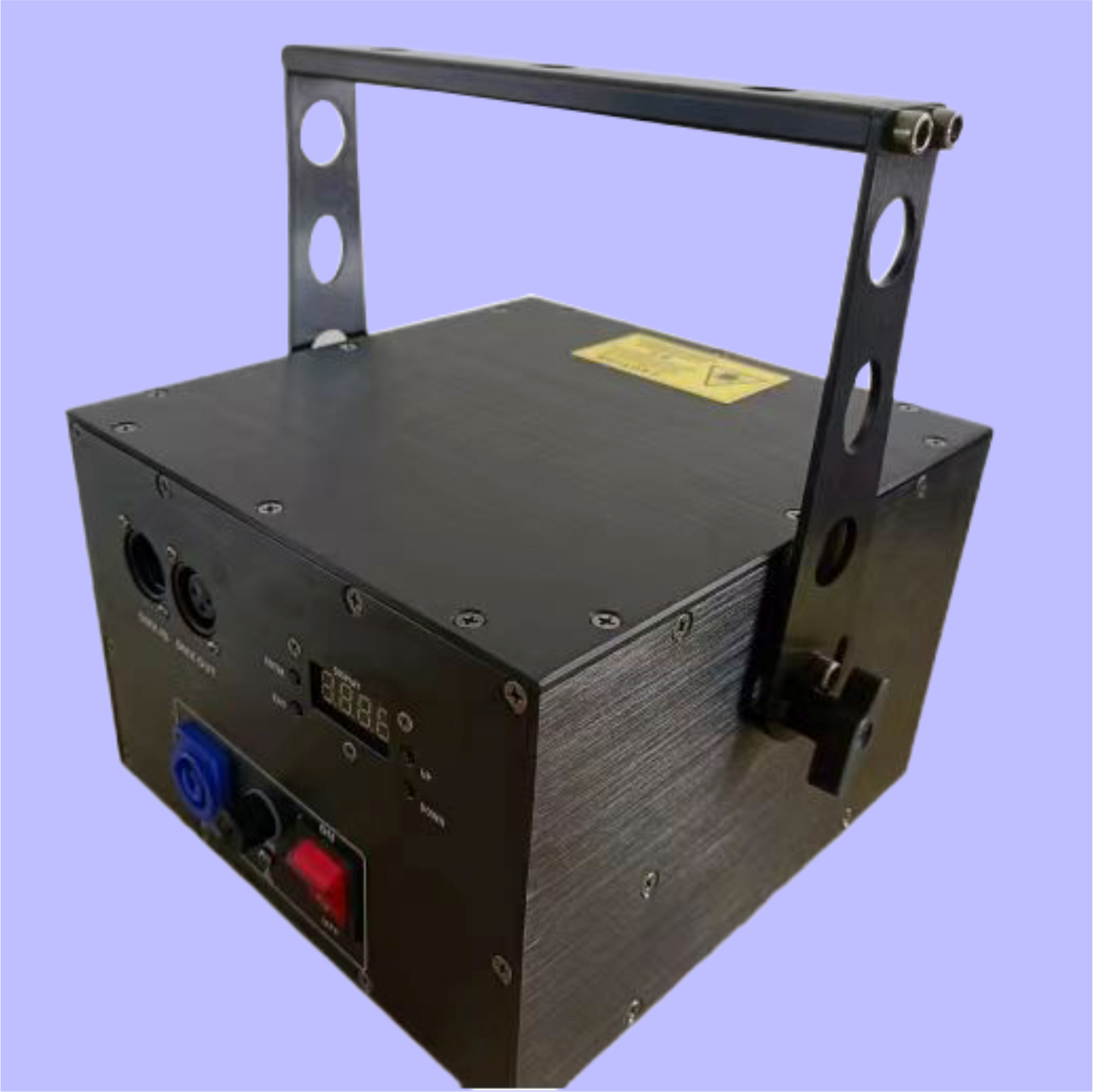

- The page is：Products > 2W full color animated laser light（AL-2RGB）
specification
instructions downloads
light data bank
Input power :AC110V/220V,50-60Hz±10%
Rated power: < 500W
Laser power: RGB2W
Laser modulation: analog modulation or TTL modulation
Laser category: pure solid-state laser, high stability, long life.
Laser outlet beam diameter: < 7mm
Laser beam divergence Angle: < 1.3 mrad
Laser wavelength: red 638±5nm, green 520±5nm, blue 450±5nm
Scanning system: 30KPPS high-speed galvanometer
Galvanometer scanning Angle: ±30°; Input signal ±5V; Linear distortion 2%
Control mode: ILDA standard computer laser software /DMX512/ self-walking/voice control/master/slave
Safety intelligence: no signal closed light, DMX signal and PC signal can be switched. With a beam of light protection function, such as galvanometer failure, only a beam of light will close the light itself.
Suitable places: medium and large performances, bars, theaters and other places
Working environment: indoor (-30 ~ 40 degrees above zero)
Cooling system: laser with TEC cooling, the whole machine fan forced cooling
Carton packaging
NET WEIGHT: 3.3KG
FIXTURE DIMENSION: L216 x W255 x H142(mm)
