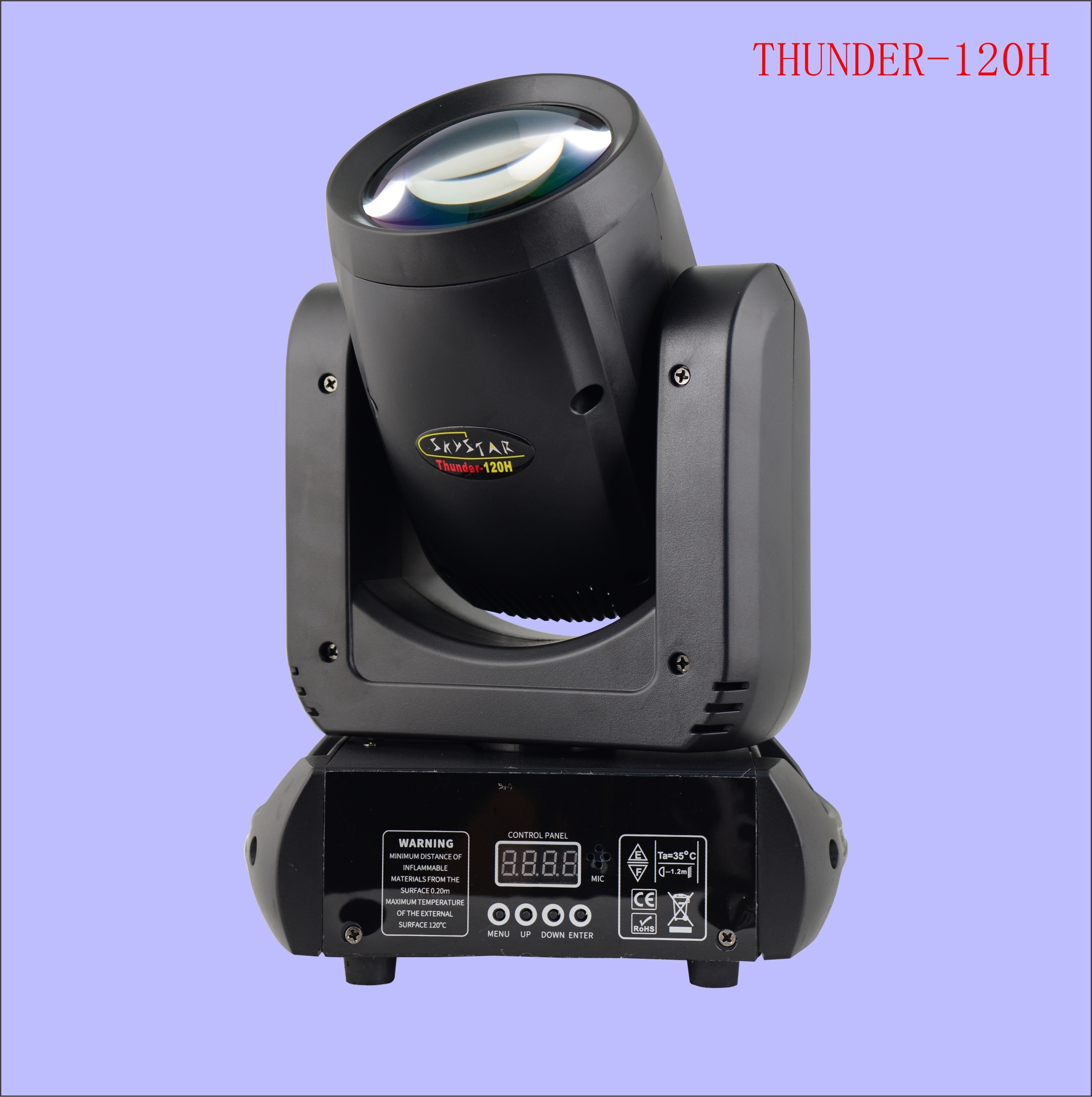

Model number:THUNDER-120HR/THUNDER-120H

VOLTAGE: AC100- 240V 50/60Hz

LIGHT SOURCE: 120W LED COB

POWER CONSUMPTION: 150W

NET WEIGHT: 5.5KG(THUNDER-120HR)

             4.5KG(THUNDER-120H)

GROSS WEIGHT: 6.5KG(THUNDER-120HR)

                   5.5KG(THUNDER-120H)

FIXTURE DIMENSION: L230×W190×H360(mm)

                             (THUNDER-120HR)

FIXTURE DIMENSION:   L240 W160 H330(mm)

                              (THUNDER-120H)

PACKING DIMENSION: L270×W230×H400(mm)

                               (THUNDER-120HR)

PACKING DIMENSION: L260×W240×H330(mm)

                               (THUNDER-120H)

BEAM ANGLE:     2°  (5 meters, 50000 LUX)

                               (THUNDER-120HR)

                  2°  (5 meters, 30000 LUX)

                               (THUNDER-120H)

1 COLOR WHEEL:14 colors+open, (THUNDER-120HR)

                 7 colors+open, (THUNDER-120H)

                   half color effect,bi-directional   rainbow effect

                   at variable speed

1 FIX GOBO WHEEL:17 fix  gobos+open,(THUNDER-120HR)

                    7 fix  gobos+open,(THUNDER-120H)

                    bi-directionally rotating at variable speed

1 PRISM WHEEL: 1 prism, bi-directionally rotating,

                              at variable   speed.

FOCUS:                 Linearly adjustable(THUNDER-120HR)

DIMMER:               0~100% linearly adjustable

STROBE:               0.5~20 flash per second, speed adjustable

PAN AND TILT: Smooth, automatic Pan & Tilt positioncorrection,

                         speed adjustable

RANGE:  Pan-540°,Tilt-270°

CONTROL PROTOCOL:DMX 512, 3 pin interface

CHANNELS:   20CH (THUNDER-120HR)

             12CH (THUNDER-120H)

DISPLAY:Touch screen , the words can be upside down

PROTECT GRADE: IP20, overheating & overvoltage protection
