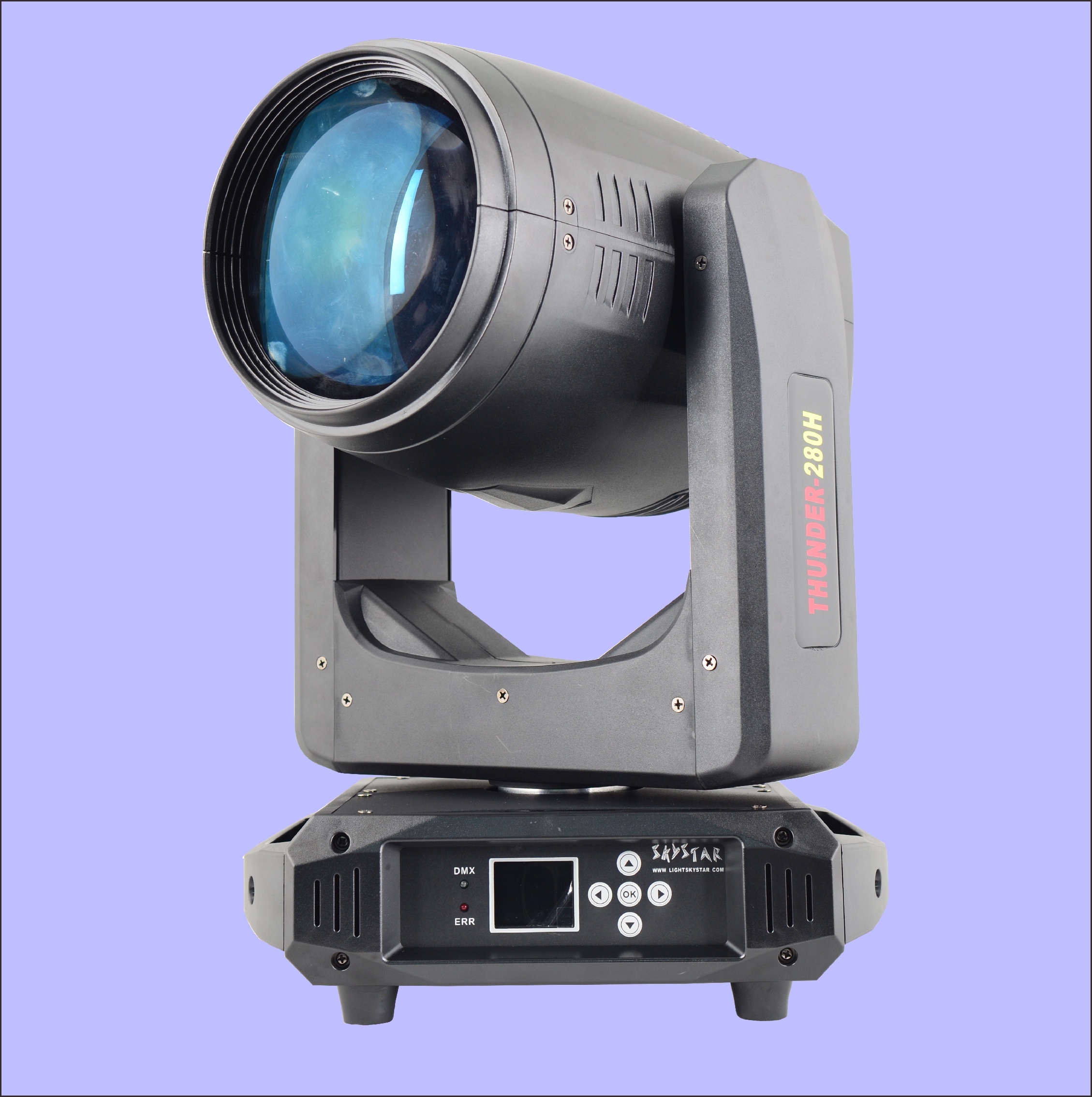

- The page is:Products > 280W LEDBeam moving head light(THUNDER-280H/PRO)
Model number:THUNDER-280H/PRO
VOLTAGE: AC100- 240V 50/60Hz

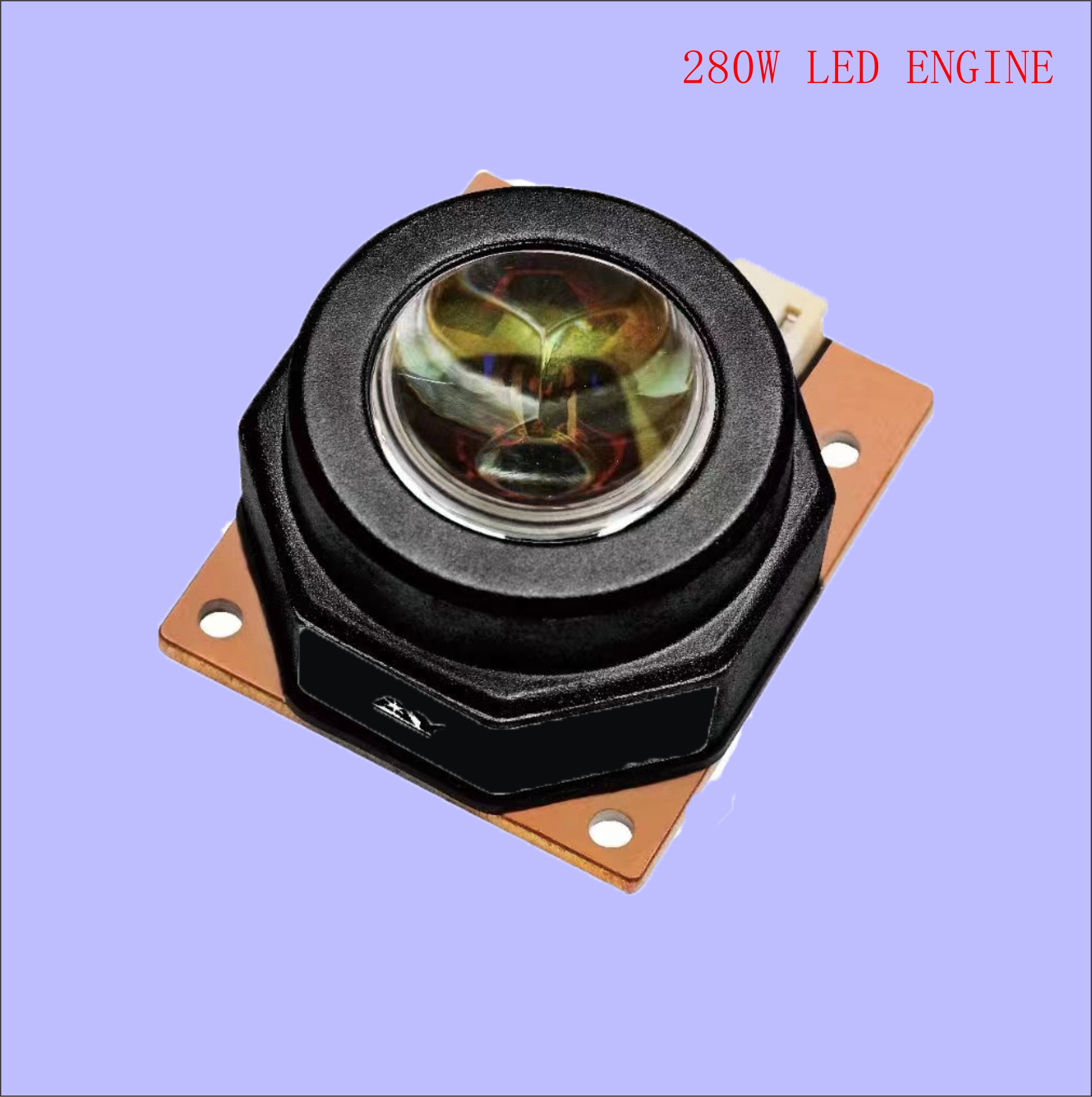

LIGHT SOURCE: 280W LED ENGINE
POWER CONSUMPTION: 330W
BEAM ANGLE: 0°--2°
ELECTRONIC FOCUS: 20 meters, 14000 LUX
1 COLOR WHEEL: 12 colors+open, half color effect,
bi-directional rainbow effect at variable speed
1 ROTATING GOBO WHEEL:6 rotating gobos+open,
bi-directionally rotating at variable speed
(THUNDER-280PRO))
1 FIX GOBO WHEEL:15 fix gobos+open, bi-directionally
rotating at variable speed
2 PRISM WHEEL:4PRISM(THUNDER-280PRO),2PRISM
(THUNDER-280H) 8、16、24-facet prism, 6-facet
linearprism bi-directionally rotating, at variable speed
FOCUS: Linearly adjustable
WASH: 0~100% adjustable
EFFECT: 6 color whee
DIMMER: 0~100% linearly adjustable
STROBE: 0.5~20 flash per second, speed adjustable
PAN AND TILT: Smooth, automatic Pan & Tilt
positioncorrection, speed adjustable
RANGE: Pan-540°, Tilt-270°(16-bit)
VECTOR MODE: Color+GOBO+Prism+XY Vector
CONTROL PROTOCOL: DMX 512, 3 pin interface
CHANNELS: 16/18/20CH(THUNDER-280PRO))
16CH(THUNDER-280H)
DISPLAY:Touch screen , the words can be upside down
PROTECT GRADE: IP20, overheating & overvoltage
protection
NET WEIGHT: 15.5KG (THUNDER-280PRO)14KG(THUNDER-280H))
GROSS WEIGHT: 17.5KG(THUNDER-280PRO)16KG(THUNDER-280H)
FIXTURE DIMENSION: L324×W238×H527(mm)
PACKING DIMENSION:L385×W300×H590(mm)
