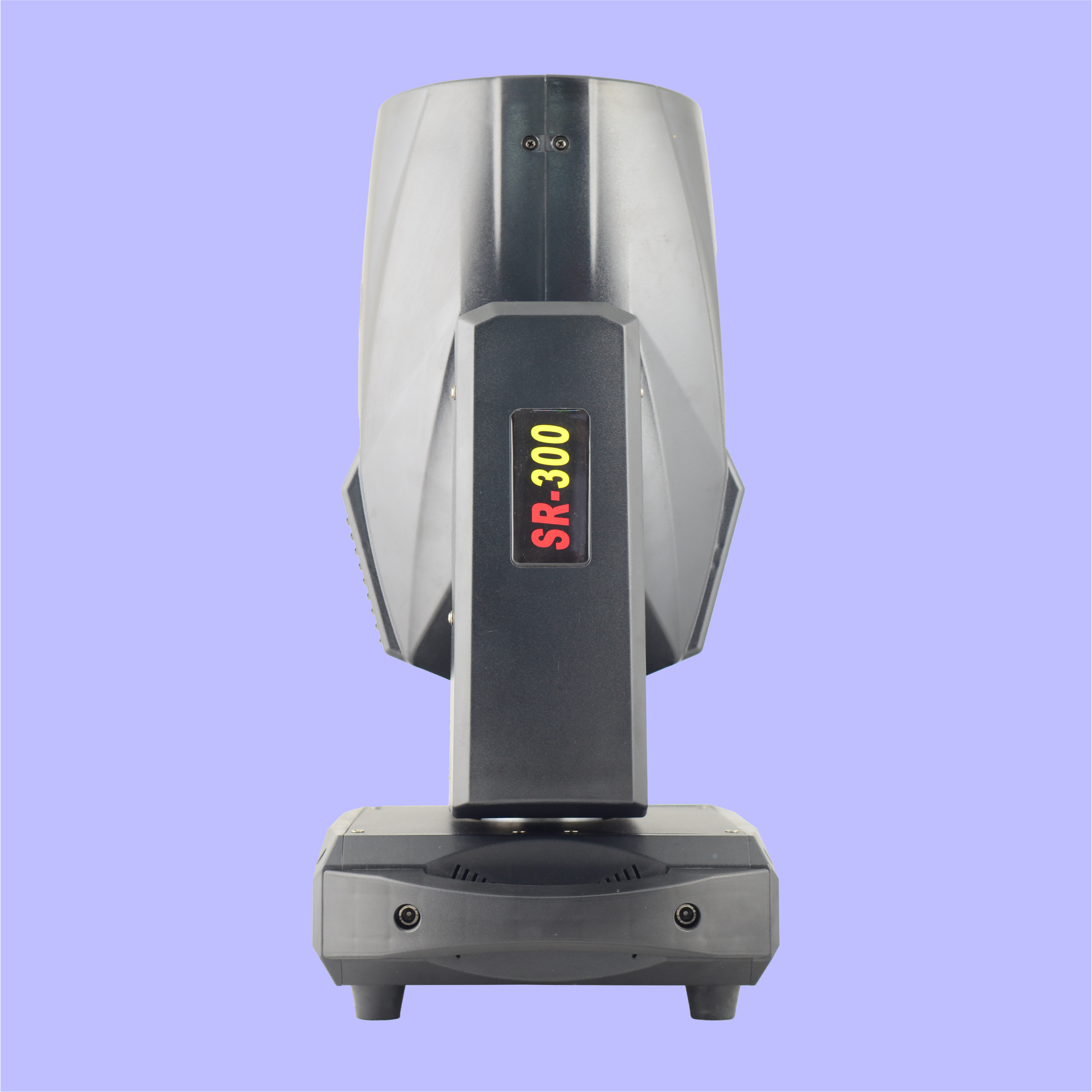

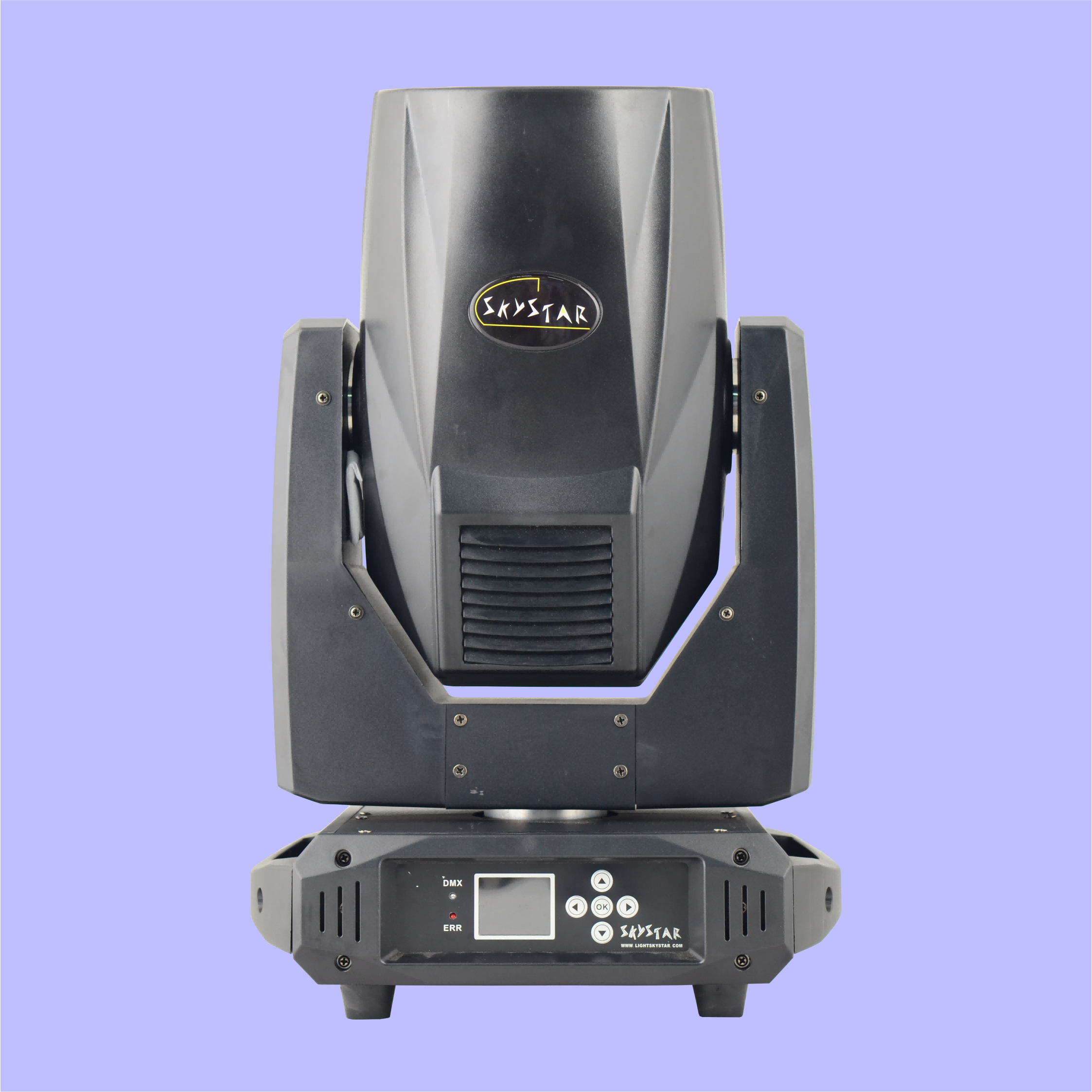

Model No.: SR-300
VOLTAGE: AC90- 240V 50/60Hz
LIGHT SOURCE: 295W 12RPOWER CONSUMPTION: 400W
OPTICAL DEVICE: high efficiency lens group,0°-1.5°zoom
ELECTRONIC FOCUS: 20 meters, 140000 LUX
Fitted with a 152mm length frontal lens
CHANNEL MODE: 16 standard DMX512 channel
LEVEL SCANNING: 540 (16 bit precision scan)VERTICAL SCAN: 280 (16 bit precision scan)
COLOR WHEEL: 12color and white light
with two-way rotating and rainbow effect
GOBO WHEEL: 15 gobos and white circle
with design jitter and arbitrary positioning function
PRISM: 2 prism,2 prism wheel with superposition,
positive and negative rotation.
SHUT: Double pole shut up to 13 times per second,
random shut and pulse shut can be choosed
DIMMER: 0% ~ 100% linear dimmer
FROST: 0% ~ 100% linear frost
EFFECT: 6 color wheel
Electronic ballast : make the product more light and bright.
Lamp more stable environmental protection and
more energy saving
SWITCHING POWER SUPPLY : AC100 ~ 240 V, 50/60 HZ
FIXTURE DIMENSION: L324×W237×H495(mm)
PACKING DIMENSION: L390×W320×H560(mm)
NET WEIGHT: 13.5KG
GROSS WEIGHT: 15.5KG)
