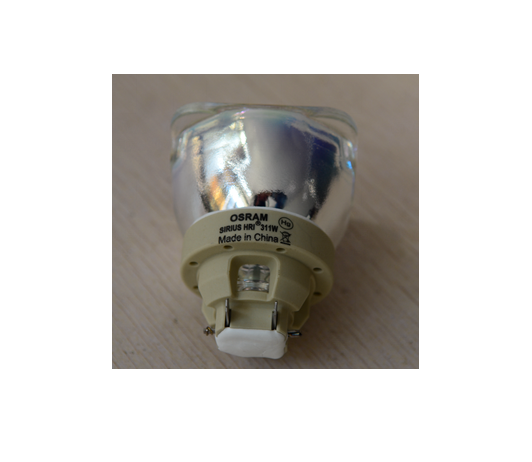

- The page is：Products > 311w OSRAM BULB / 380w Beam (SR-311/SR-380)
specification
instructions downloads
light data bank
Model number: SR-380/ SR-311
POWER CONSUMPTION: 230 V 50 HZ 500W/ 450W
OPTICAL DEVICE: high efficiency lens group,0°-1.5°zoom
ELECTRONIC FOCUS: 20 meters, 150000 LUX
CHANNEL MODE: 16 standard DMX512 channel
LEVEL SCANNING: 540 (16 bit precision scan)
VERTICAL SCAN: 280 (16 bit precision scan)
COLOR WHEEL: 14color and white light
with two-way rotating and rainbow effect
GOBO WHEEL: 17 gobos and white circle
with design jitter and arbitrary positioning function
PRISM: 2 prism,2 prism wheel with superposition,
positive and negative rotation .
SHUT: Double pole shut up to 13 times per second,
random shut and pulse shut can be choosed
DIMMER: 0%-100% linear dimmer
FROST: 0%-100% linear frost
Electronic ballast : make the product more light and bright.
Lamp more stable environmental protection and
more energy saving
SWITCHING POWER SUPPLY : AC100-240 V, 50/60 HZ
FIXTURE DIMENSION: L325×270×555(mm)
PACKING DIMENSION: L415×330×635(mm)
NET WEIGHT: 15KG
GROSS WEIGHT: 17KG
