Model number: Thunder-100H
VOLTAGE: AC90- 240V 50/60Hz
LIGHT SOURCE: 100W LED ENGINEPOWER CONSUMPTION: 180W
NET WEIGHT: 13KG
GROSS WEIGHT: 15KG
FIXTURE DIMENSION: L330×W230×H515(mm)
PACKING DIMENSION: L385×W320×H535(mm)

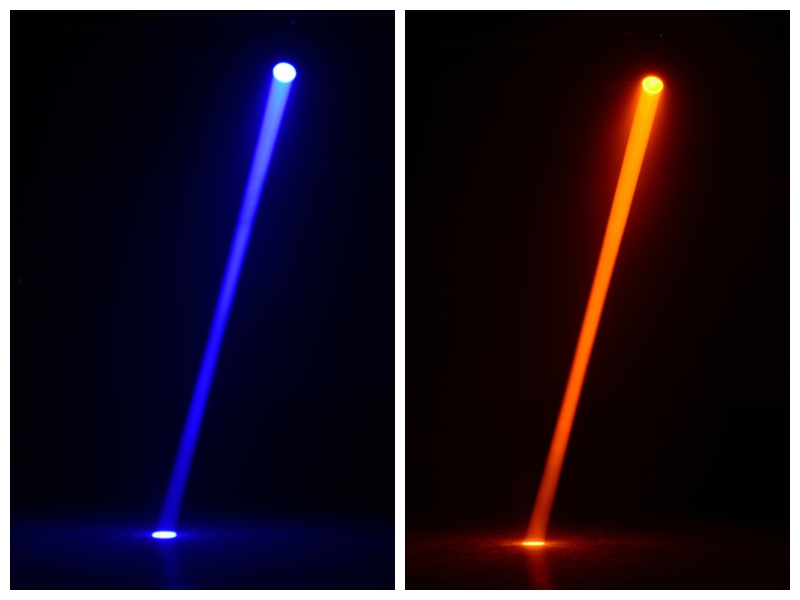

BEAM ANGLE: 1.5° (5 meters, 190000 LUX)
1 COLOR WHEEL:12 colors+open, half color effect,
bi-directional rainbow effect at variable speed

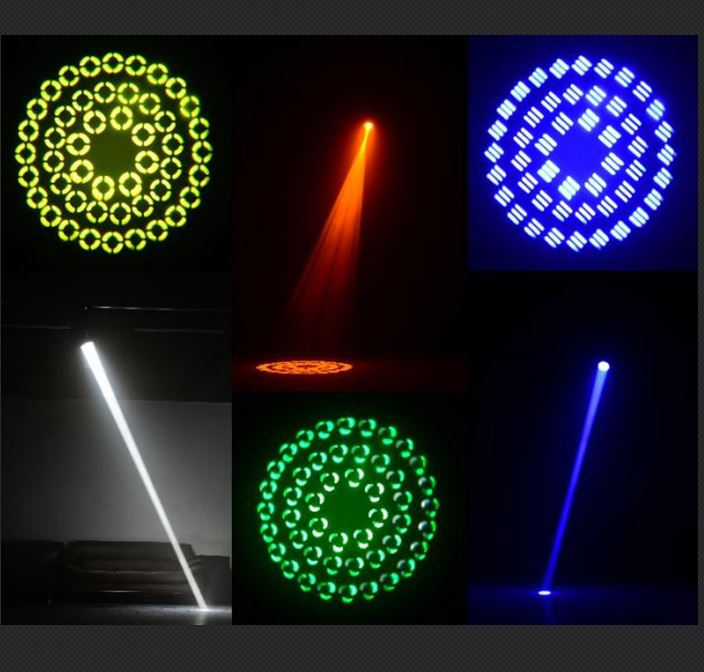

1 FIX GOBO WHEEL:13 fix gobos+open, bi-directionally
rotating at variable speed
1 PRISM WHEEL: 2 prism, bi-directionally rotating,
at variable speed, 6 color wheel.
FOCUS: Linearly adjustable
DIMMER: 0~100% linearly adjustable
WASH: 0~100% adjustable
STROBE: 0.5~20 flash per second, speed adjustable
PAN AND TILT: Smooth, automatic Pan & Tilt positioncorrection,
speed adjustable
RANGE: Pan-540°,Tilt-270°
CONTROL PROTOCOL:DMX 512, 3 pin interface
CHANNELS: 16CH
DISPLAY:Touch screen , the words can be upside down
PROTECT GRADE: IP20, overheating & overvoltage protection
