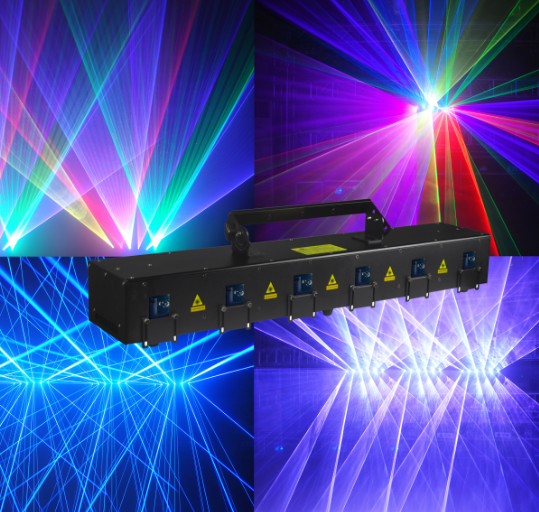

Animation Laser(LS-106/206/306)
specification
instructions downloads
light data bank

Model number:  LS-106/206/306

Power supply: input voltage 100~250V/AC, 50/60Hz,
The maximum power is 250W
Laser power:
LS-106 RGB:
Red laser 150mW@638nm*6pcs, green laser light *6pcs, blue laser *6pcs
LS-206 RGB:
Red laser 40mW@638nm*6pcs, green laser light *6pcs, blue laser *6pcs
LS-306 RGB:
Red laser 600mW@638nm*6pcs, green laser light *6pcs, blue laser *6pcs
Laser life: BBB 0 5000 hours
Working environment: indoor, -30°C--40°C
Scanning system: 20KPPS high precision vibrator, ±20 degree scanning
Control mode: DMX mode (ordinary 12-channel mode, professional 60-channel mode),
Voice control mode (MUSIC), automatic mode (AUTO)
Interfacing: 3PIN XLR interface, Powercon power supply interface
DMX Function: 12 or 60 channel control
Machine size: LS-106 RGB: 1000(L)*167(W)*115(H)mm
                    LS-206 RGB/LS-306 RGB: 1000(L)*206(W)*135(H)mm
Net weight: LS-106 RGB: 14KG
                  LS-206 RGB/LS-306 RGB : 19Kg
Gross weight: LS-106 RGB: 16Kg
                     LS-206 RGB/LS-306 RGB: 21Kg
