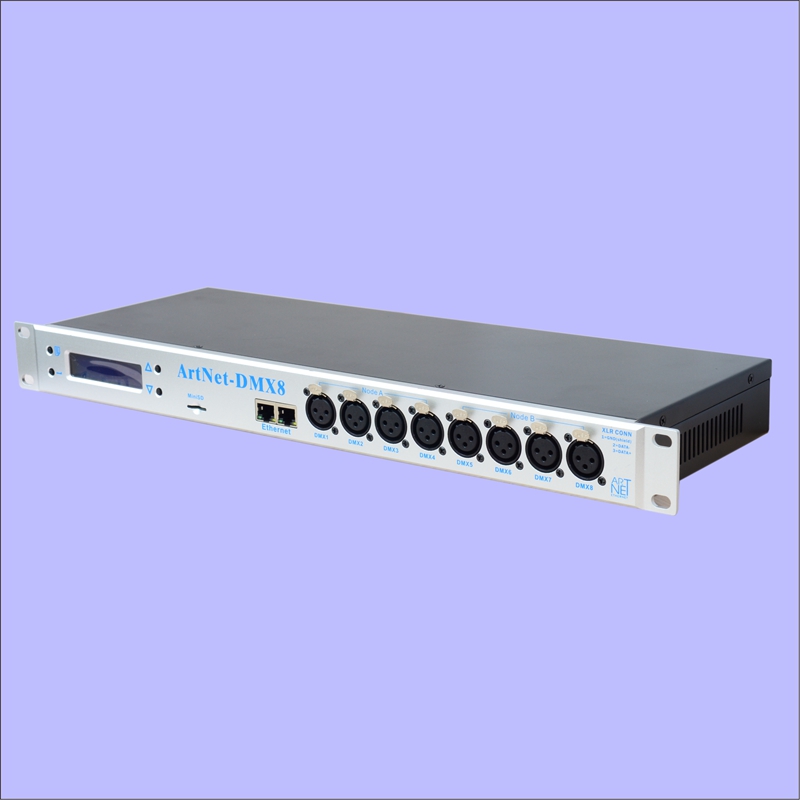

Art-8

ArtNet-DMX Bidirectional Converter

DMX 8 x shielded & gold-plated 3 prong XLR(socket.)
Network: 2x10100 Mbps RJ45 connector
Power 110 v - 220 vac
Supported protocols: DMX512 (1986 & 1990) dmx512-a, RDM (optional) ANSI E1.20
DMX port direction: input or output (configurable)
DMX port protection: built - in 1.5kv
DMX port matching/bias: yes
DMX parameter: frame frequency: 10-40fps/ Break: 176-352 μs
Supported protocols: art-net, UDP, TCP, ICMP, DHCP
Port rate: 10/100 BaseTX
Port detection: automatic negotiation, MDI/MDIX
Configuration management software: search found, easy configuration
WEB configuration: support
LCD display configuration: setting information (IP address, subnet mask, DMX port setting)
Ethernet port indication: connection and activity
Run: LED indication
